CloudFlare: SSL Added and Removed Here :-)

One of the more infamous leaked NSA documents was a slide showing a hand-drawn diagram of Google's network architecture, with the comment "SSL added and removed here!" along with a smiley face, written underneath the box for Google's front-end servers.

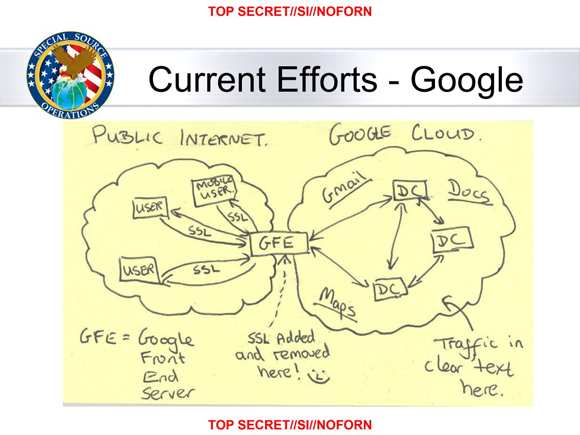

NSA slide showing diagram of Google's network architecture, with the comment "SSL added and removed here!" along with a smiley face, written underneath the box for Google's front-end servers.

"SSL added and removed here! :-)"

The point of the diagram was that although Google tried to protect their users' privacy by using HTTPS to encrypt traffic between web browsers and their front-end servers, they let traffic travel unencrypted between their datacenters, so their use of HTTPS was ultimately no hindrance to the NSA's mass surveillance of the Internet.

Today the NSA can draw a new diagram, and this time, SSL will be added and removed not by a Google front-end server, but by a CloudFlare edge server. That's because, although CloudFlare has taken the incredibly generous and laudable step of providing free HTTPS by default to all of their customers, they are not requiring the connection between CloudFlare and the origin server to be encrypted (they call this "Flexible SSL"). So although many sites will now support HTTPS thanks to CloudFlare, by default traffic to these sites will be encrypted only between the user and the CloudFlare edge server, leaving plenty of opportunity for the connection to be eavesdropped beyond the edge server.

Arguably, encrypting even part of the connection path is better than the status quo, which provides no encryption at all. I disagree, because CloudFlare's Flexible SSL will lull website visitors into a false sense of security, since these partially-encrypted connections will appear to the browser as normal HTTPS connections, padlock and all. There will be no distinction made whatsoever between a connection that's protected all the way to the origin, and a connection that's protected only part of the way. Providing a false sense of security is often worse than providing no security at all, and I find the security of Flexible SSL to be quite lacking. That's because CloudFlare aims to put edge nodes as close to the visitor as possible, which minimizes latency, but also minimizes the percentage of an HTTPS connection which is encrypted. So although Flexible SSL will protect visitors against malicious local ISPs and attackers snooping on coffee shop WIFI, it provides little protection against nation-state adversaries. This point is underscored by a map of CloudFlare's current and planned edge locations, which shows a presence in 37 different countries, including China. China has abysmal human rights and pervasive Internet surveillance, which is troubling because CloudFlare explicitly mentions human rights organizations as a motivation for deploying HTTPS everywhere:

Every byte, however seemingly mundane, that flows encrypted across the Internet makes it more difficult for those who wish to intercept, throttle, or censor the web. In other words, ensuring your personal blog is available over HTTPS makes it more likely that a human rights organization or social media service or independent journalist will be accessible around the world.

It's impossible for Flexible SSL to protect a website of a human rights organization from interception, throttling, or censoring when the connection to that website travels unencrypted through the Great Firewall of China. What's worse is that CloudFlare includes the visitor's original IP address in the request headers to the origin server, which of course is unencrypted when using Flexible SSL. A nation-state adversary eavesdropping on Internet traffic will therefore see not only the URL and content of a page, but also the IP address of the visitor who requested it. This is exactly the same situation as unencrypted HTTP, yet as far as the visitor can tell, the connection is using HTTPS, with a padlock icon and an https:// URL.

It is true that HTTPS has never guaranteed the security of a connection behind the host that terminates the SSL, and it's already quite common to terminate SSL in a front-end host and forward unencrypted traffic to a back-end server. However, in almost all instances of this architecture, the SSL terminator and the back-end are in the same datacenter on the same network, not in different countries on opposite sides of the world, with unencrypted connections traveling over the public Internet. Furthermore, an architecture where unencrypted traffic travels a significant distance behind an SSL terminator should be considered something to fix, not something to excuse or encourage. For example, after the Google NSA slide was released, Google accelerated their plans to encrypt all inter-datacenter traffic. In doing so, they strengthened the value of HTTPS. CloudFlare, on the other hand, is diluting the value of HTTPS, and in astonishing numbers: according to their blog post, they are doubling the number of HTTPS sites on the Internet from 2 million to 4 million. That means that after today, one in two HTTPS websites will be using encryption where most of the connection path is actually unencrypted.

Fortunately, CloudFlare has an alternative to Flexible SSL which is free and provides encryption between CloudFlare and the origin, which they "strongly recommend" site owners enable. Unfortunately, it requires manual action on the part of website operators, and getting users to follow security recommendations, even when strongly recommended, is like herding cats. The vast majority of those 2 million website operators won't do anything, especially when their sites already appear to be using HTTPS and thus benefit from the main non-security motivation for HTTPS, which is preference in Google search rankings.

This is a difficult problem. CloudFlare should be commended for tackling it and for their generosity in making their solution free. However, they've only solved part of the problem, and this is an instance where half measures are worse than no measures at all. CloudFlare should abolish Flexible SSL and make setting up non-Flexible SSL easier. In particular, they should hurry up the rollout of the "CloudFlare Origin CA," and instead of requiring users to submit a CSR to be signed by CloudFlare, they should let users download, in a single click, both a private key and a certificate to be installed on their origin servers. (Normally I'm averse to certificate authorities generating private keys for their users, but in this case, it would be a private CA used for nothing but the connection between CloudFlare and the origin, so it would be perfectly secure for CloudFlare to generate the private key.)

If CloudFlare continues to offer Flexible SSL, they should at least include an HTTP header in the response indicating that the connection was not encrypted all the way to the origin. Ideally, this would be standardized and web browsers would not display the same visual indication as proper HTTPS connections if this header is present. Even without browser standardization, the header could be interpreted by a browser extension that could be included in privacy-conscious browser packages such as the Tor Browser Bundle. This would provide the benefits of Flexible SSL without creating a false sense of security, and help fulfill CloudFlare's stated goal to build a better Internet.

Hi, I'm Andrew. I'm the founder of SSLMate, a service which automates your SSL certificate deployment. I also develop open source projects like git-crypt and titus.

I blog here about a variety of technology topics, including security, devops, IPv6, and reliable programming. If you liked this post, check out my other posts or subscribe to my Atom feed.

My email address is andrew@agwa.name. I'm AGWA at GitHub and @__agwa on Twitter.

Comments

The comments below are owned by whoever posted them. I am not responsible for them in any way.

In short, CloudFlare "Full SSL", which requires an SSL on the host server, is better than its "Flexible SSL". Full SSL helps you make a complete circle. Is there any problem with the CloudFlare "Full SSL"?

| Posted on 2014-11-20 at 03:20:32 UTC by Reader John | Reply to This

"Full SSL" is better than "Flexible SSL" but it's not authenticated, meaning the connection between CloudFlare and the origin can be man-in-the-middled by active attackers.

"Full SSL (Strict)" is the only secure mode.

| Posted on 2014-11-20 at 15:21:29 UTC by Andrew Ayer | Reply to This

None of the CloudFlare-fronted WordPress sites I support render even remotely properly when requesting content via Flexible SSL, most likely due to issues with WordPress, the application server, or some other issue on the back-end. Enabling SSL is a whole lot more than handshaking and certificates, and I think most of these "encrypt the Internet" efforts trivialize a task that is more challenging.

This is on top of the fact that it lulls site administrators and end users into a false sense of security.

| Posted on 2014-12-01 at 22:49:03 UTC by Reader Brian M. | Reply to This

Good point. In fact, few of the CloudFlare-using, non-HTTPS sites which I regularly visit switched to HTTPS after CloudFlare's rollout, probably because of mixed content problems. I wonder how close CloudFlare actually got to their estimate of 2 million sites.

| Posted on 2014-12-01 at 23:03:15 UTC by Andrew Ayer | Reply to This

It's not just mixed content, but application servers that will add explicit HTTP:// links in the response body, for example. Since the server thinks it's answering via HTTP (port 80), certain behaviors are present, and need to be re-written. Including HTTP response codes. I haven't seen anything in CloudFlare's writeups that indicates their CDN will rewrite response bodies or codes to account for these kinds of behaviors.

The Full SSL option will fix a lot of this behavior because the server then thinks it's answering via HTTPS (port 443), but that takes us back to the beginning of your problem statement: it's a non-trivial task for users/admins to take action to enable the encrypted back-end connection from application server to CloudFlare. Since most of the 2 million sites CF counts are small business or "prosumer" type of sites such as blogs, then I'd wager the percentage of effective, usable sites with Flexible SSL or Full SSL isn't very high, at all.

| Posted on 2014-12-01 at 23:28:34 UTC by Reader Brian M. | Reply to This
